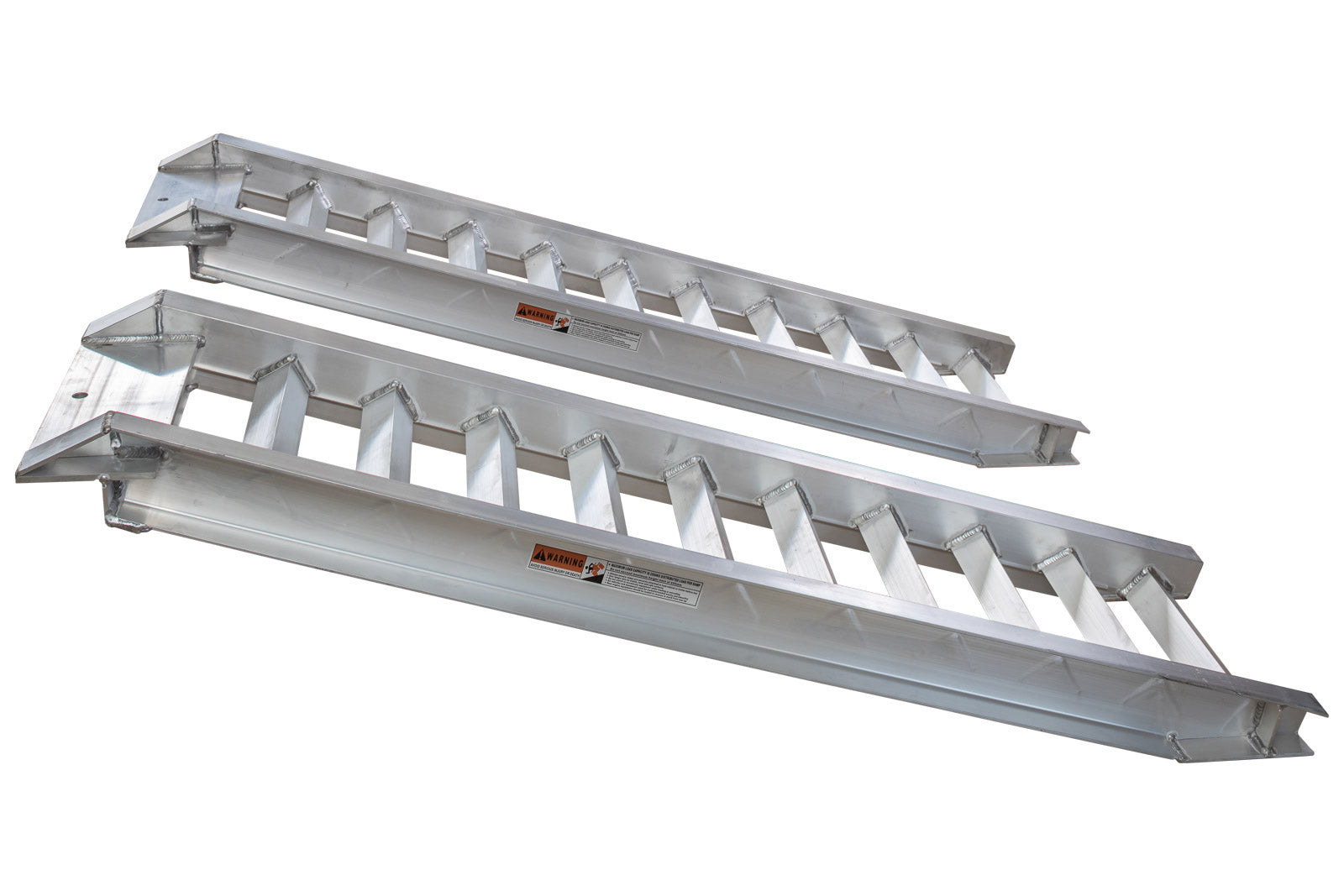

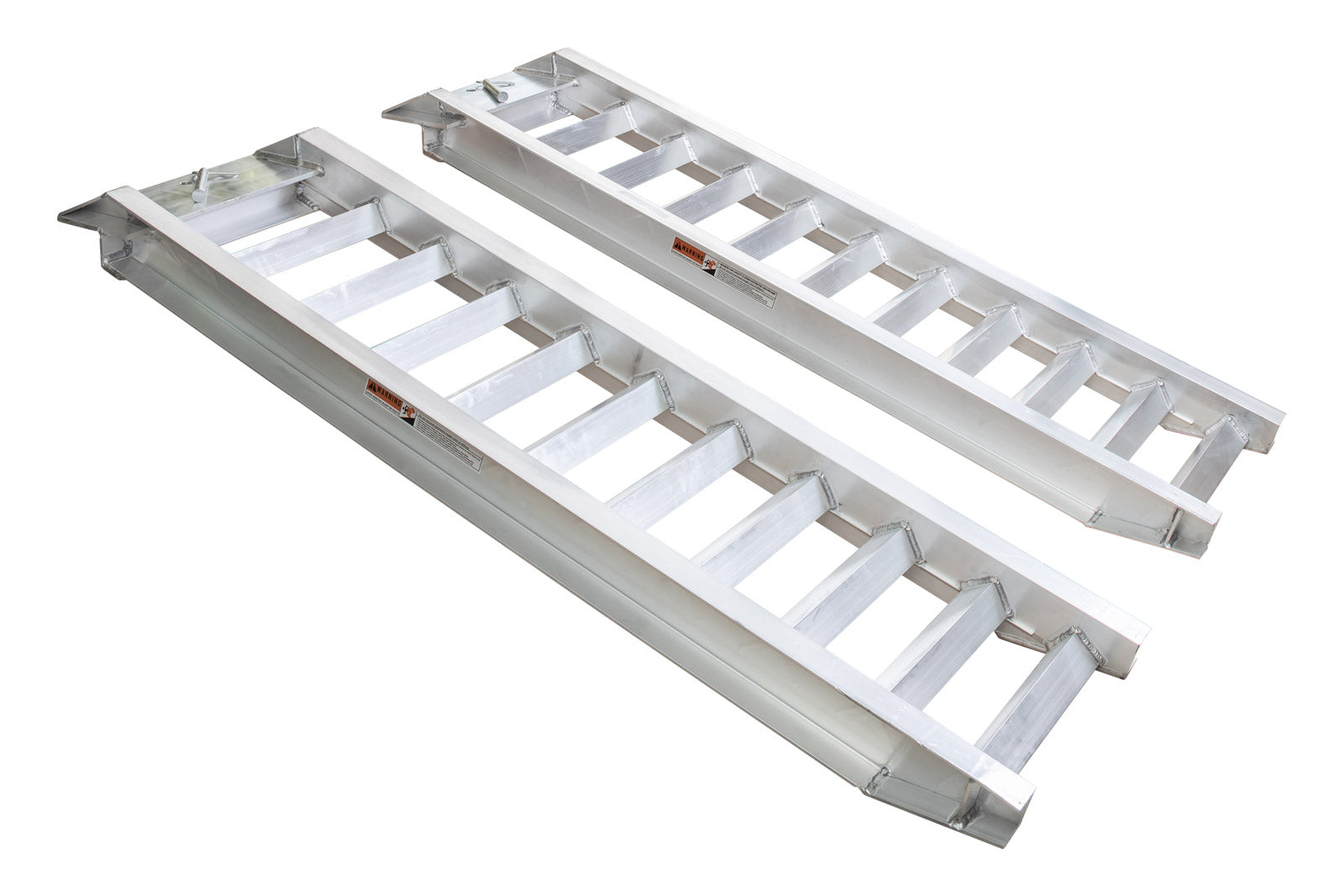

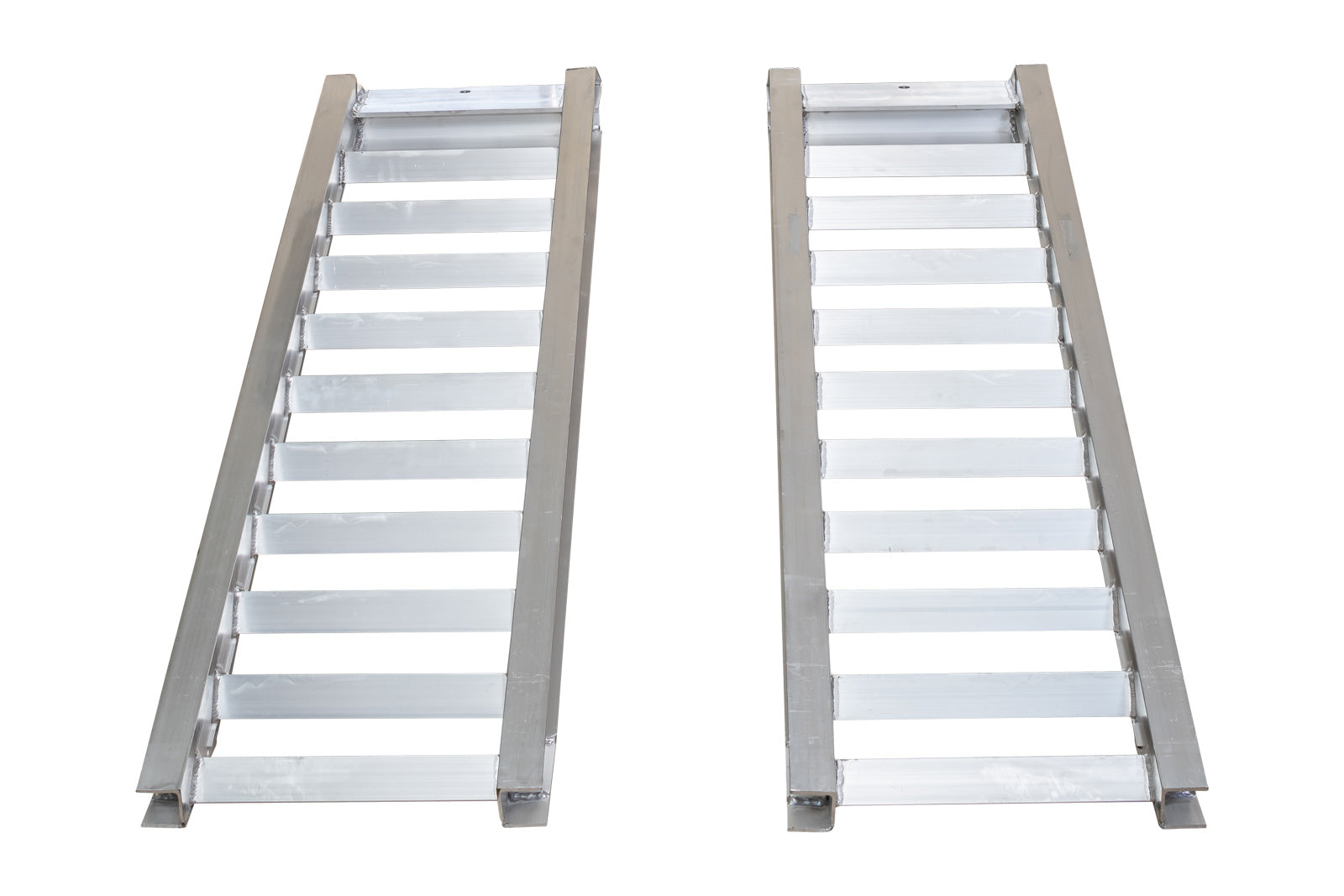

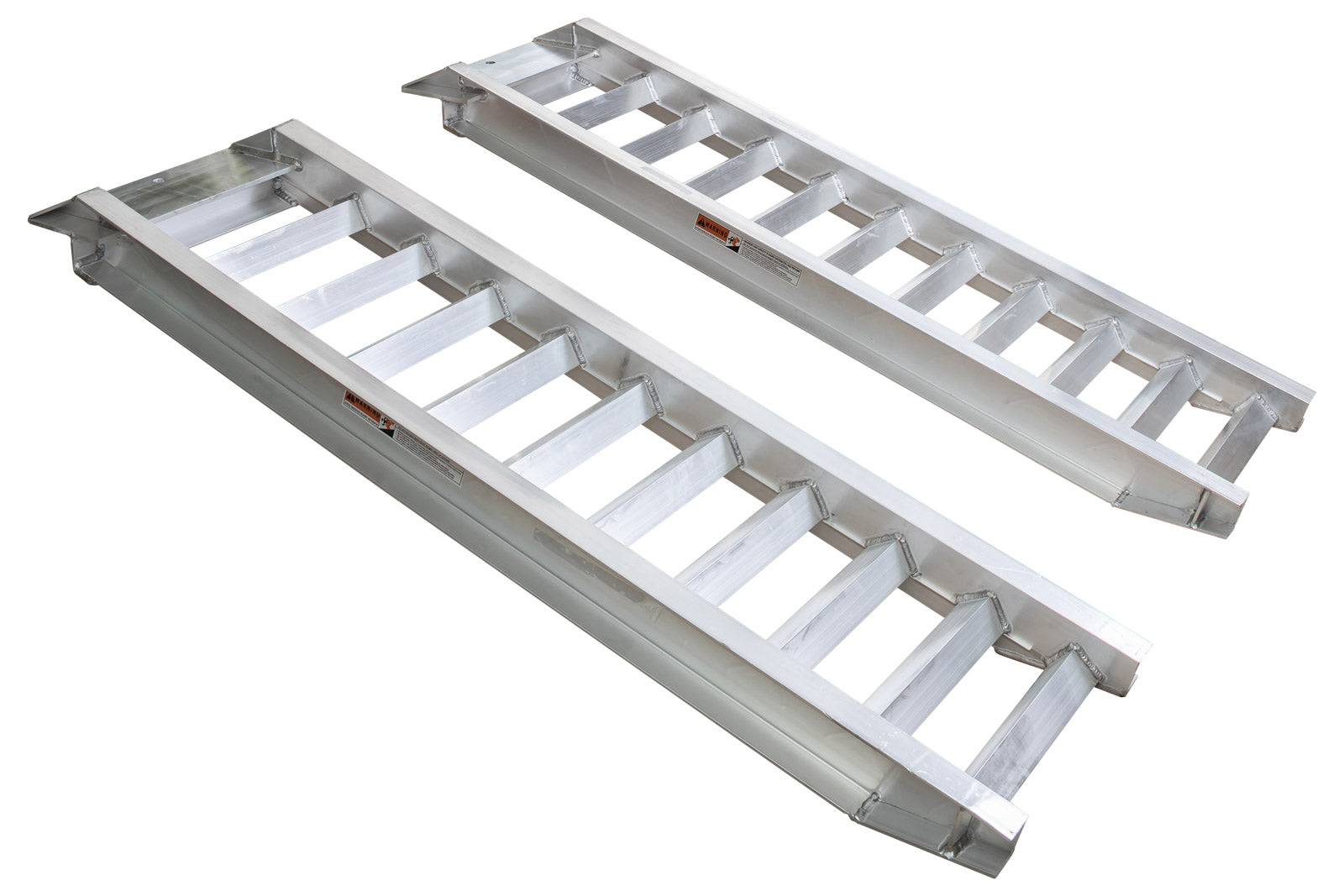

5000kg 1.6m Alumium Loading Ramps (pair)

The 5000kg 1.6m Extreme Loading Ramps Pair from Ramped Up provides a reliable and versatile solution for loading heavy equipment such as bobcats, excavators and vehicles onto trailers.

Sturdy Construction for Maximum Durability

The 5000kg 1.6m Extreme Loading Ramps are constructed from high-quality aluminum, providing maximum durability and longevity. Constructed from marine grade aluminium the ramps are designed to withstand the weight of heavy machinery again, and again, and again.

High Traction Surface for Safe Loading

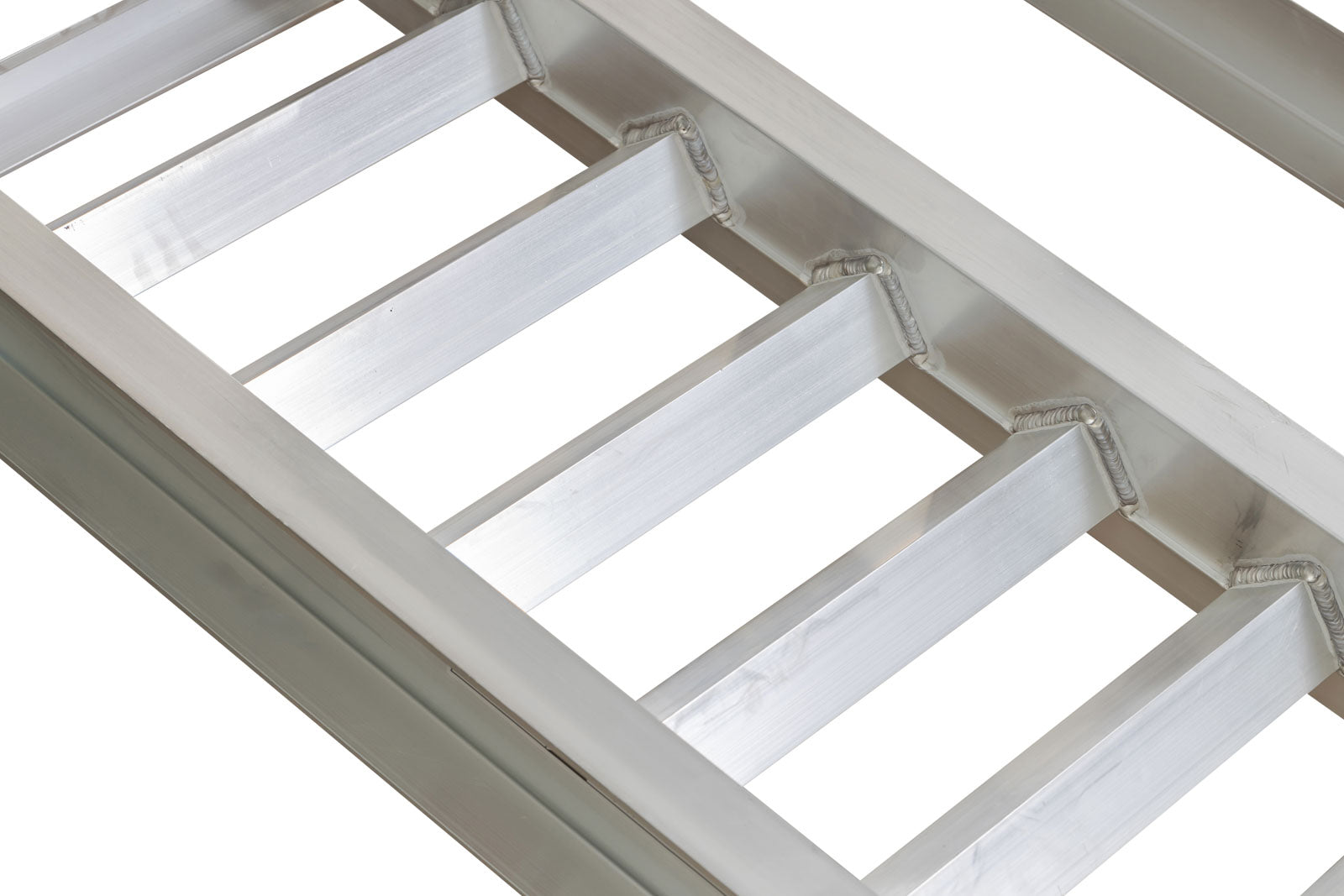

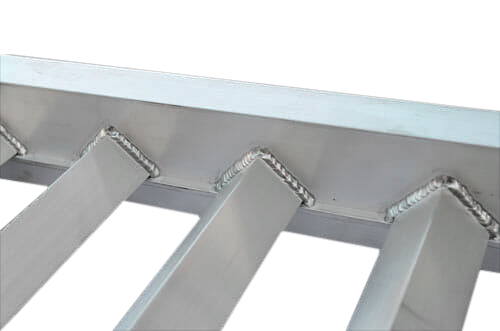

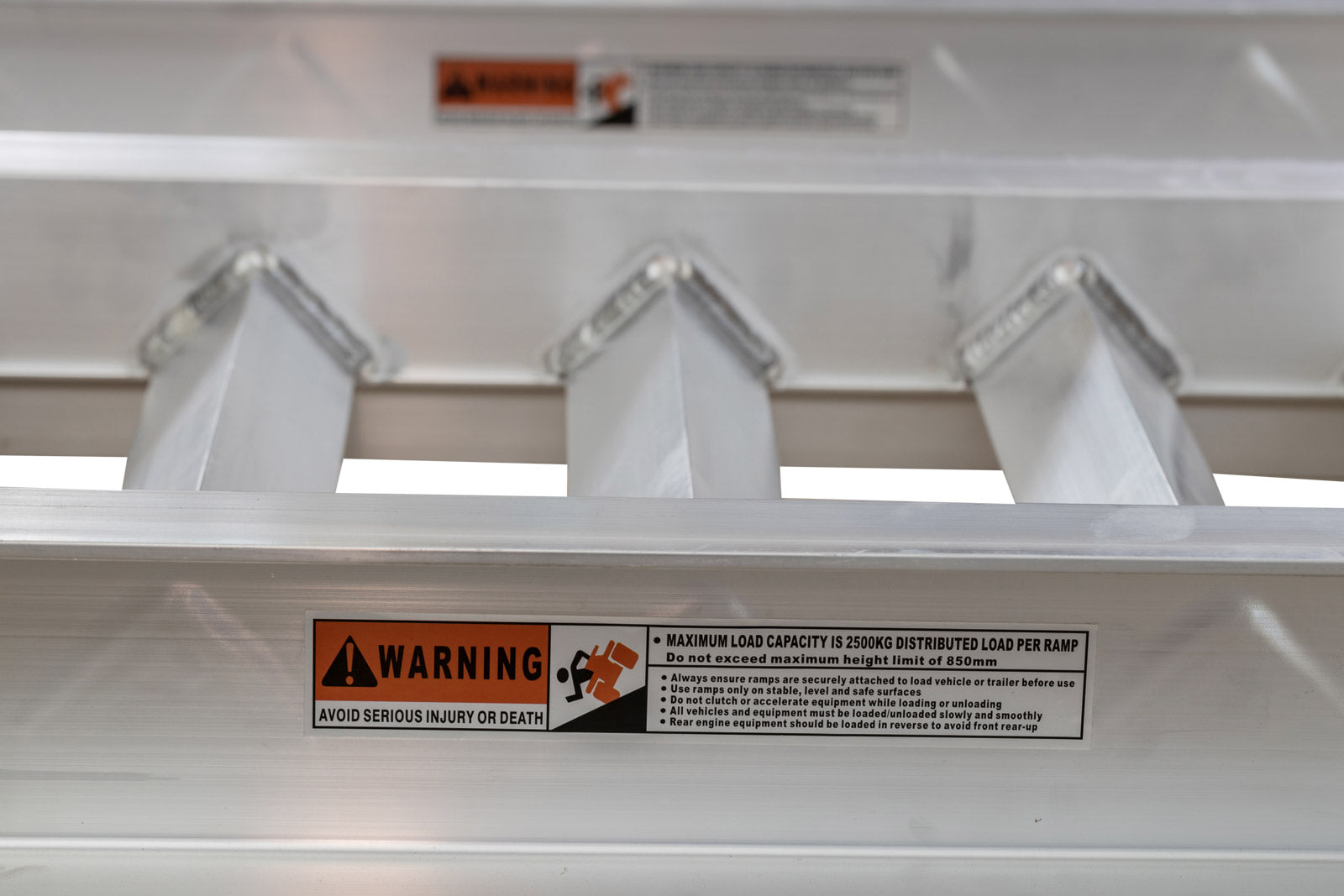

The ramps feature extremely heavy duty right angle rungs to prevent machinery from slipping or sliding during the loading and unloading process. This ensures the safety of the operator and the equipment being loaded.

High Load Capacity for Versatility

The 5000kg 1.6m Extreme Loading Ramps have a combined load rating of 5000kg. This makes them suitable for a wide range of heavy machinery, including bobcats, excavators, and other heavy equipment.

Easy to Store and Transport

At only 1.6m long and 17.5kg each, These loading ramps are lightweight and can be easily transported and stored.

• Genuine 5000kg capacity (2500kg per Ramp)

• Compact 1.6M Length
• Versatile loading height 400mm – 650mm
• Dimensions: 1600mm x 450mm x 110mm
• Width (Inside Track): 345mm Width
• Rung Spacing: 70mm
• Beam to rung offset/depth: 35mm

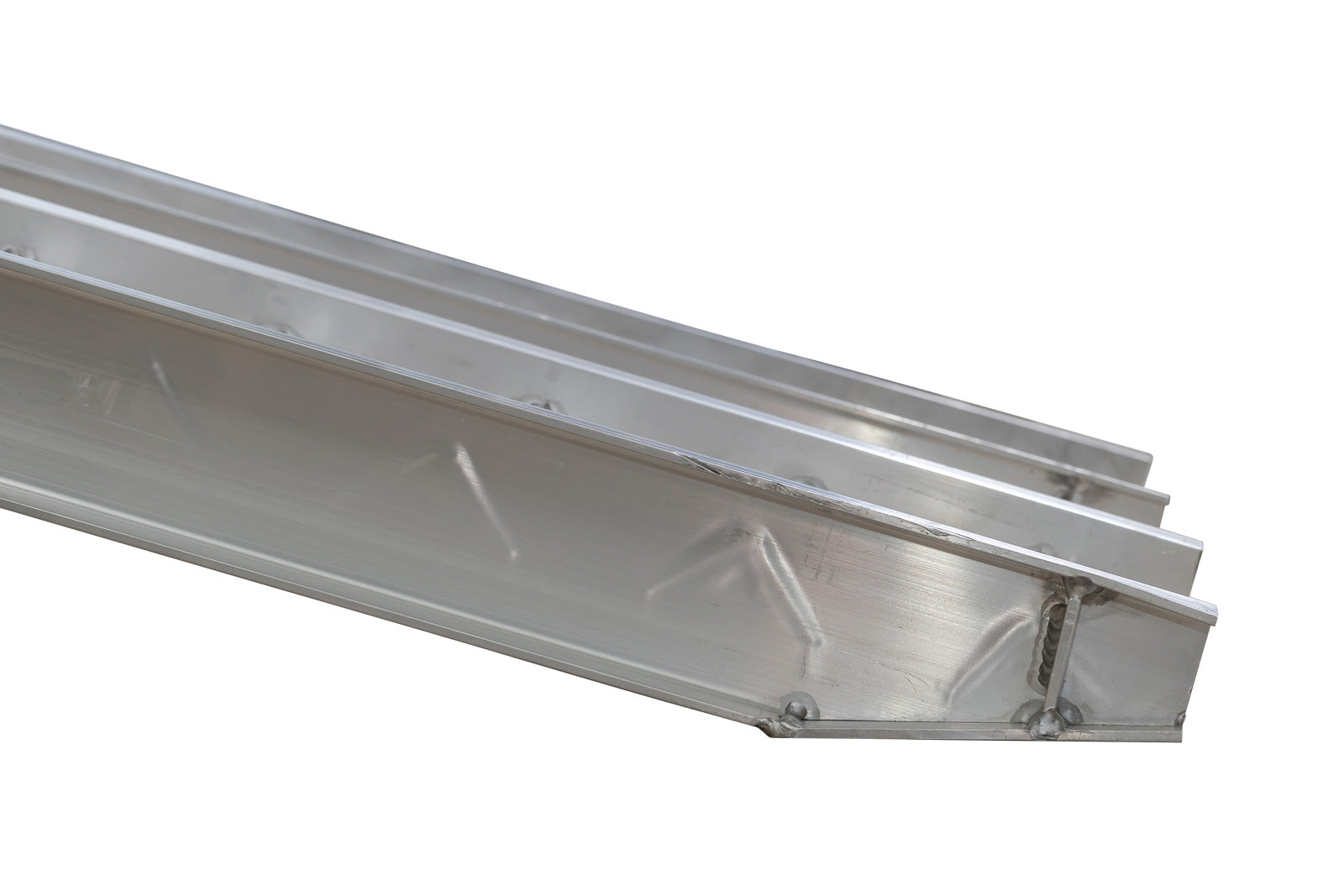

• 110mm Beams
• 17.5kg per ramp

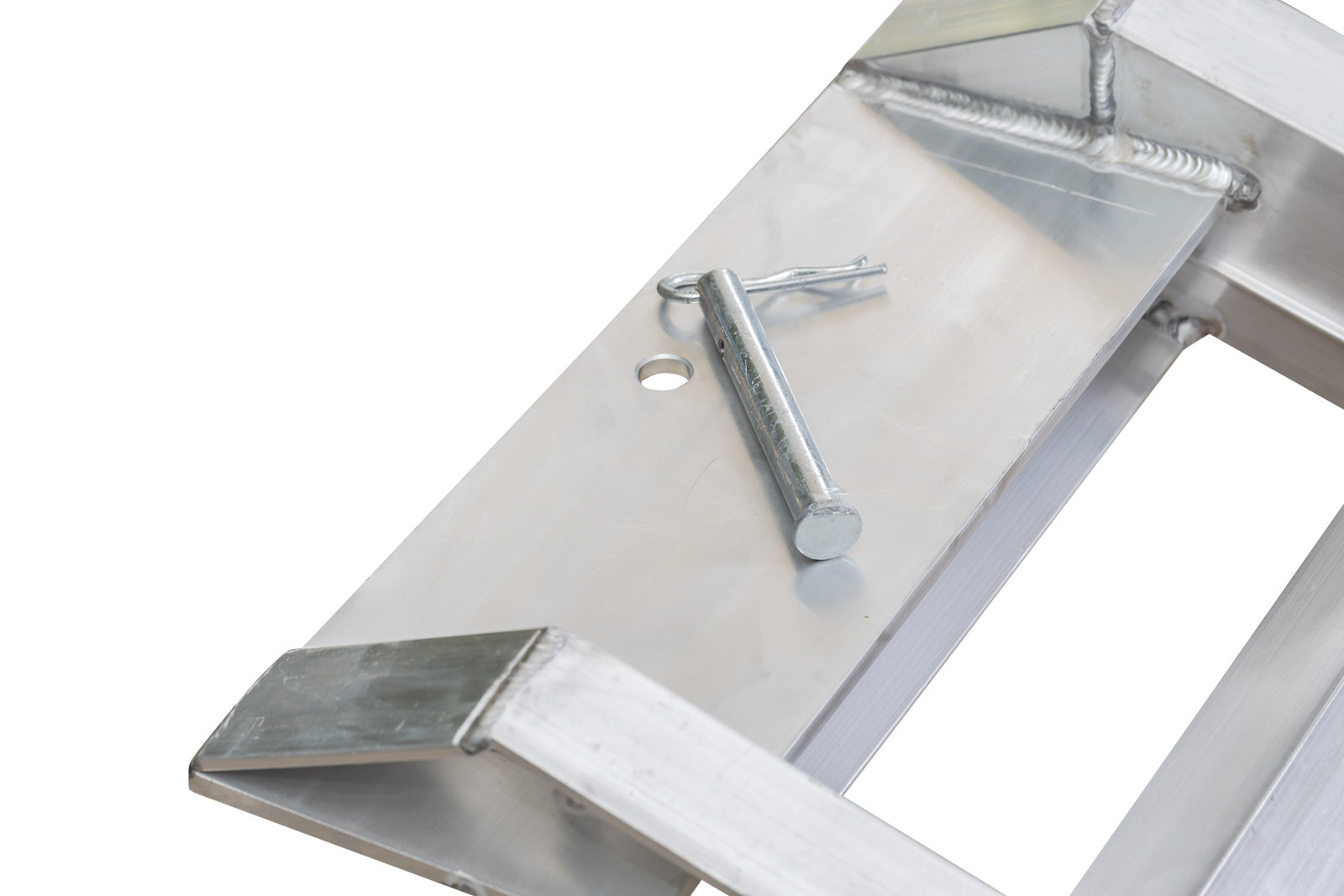

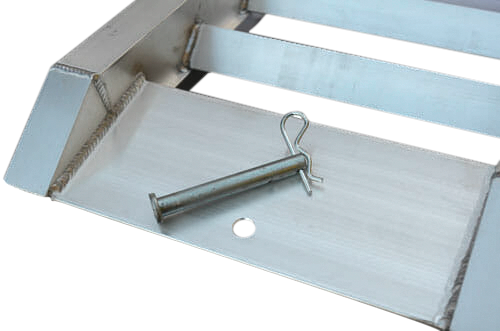

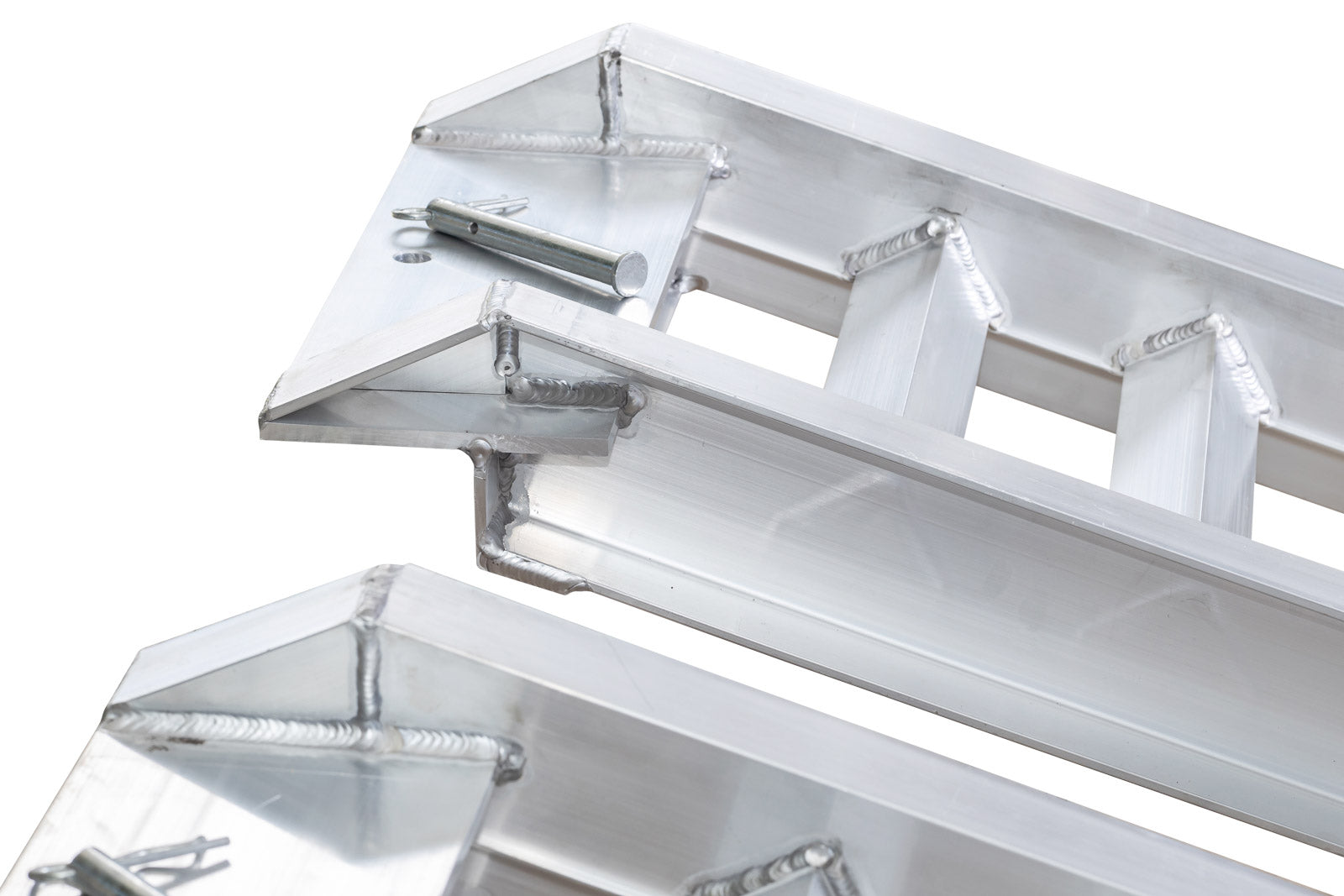

• Includes loading locking pins – 130mm x 15mm
• Ideal For Cars, 4WDs, Bobcats, Mini Excavators and Heavy Plant Equipment
• Corrosion Free Marine Grade Alloy
